Micro services

Media Data Flow

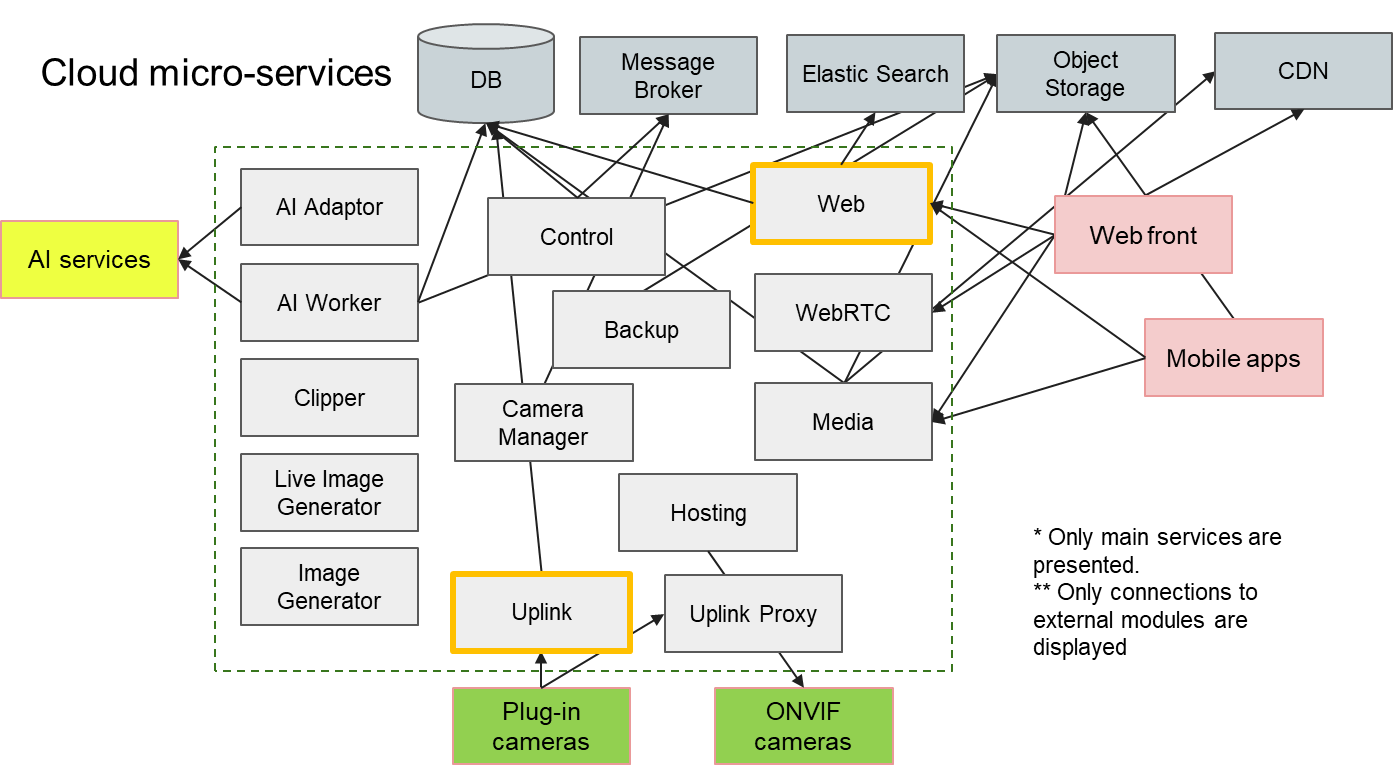

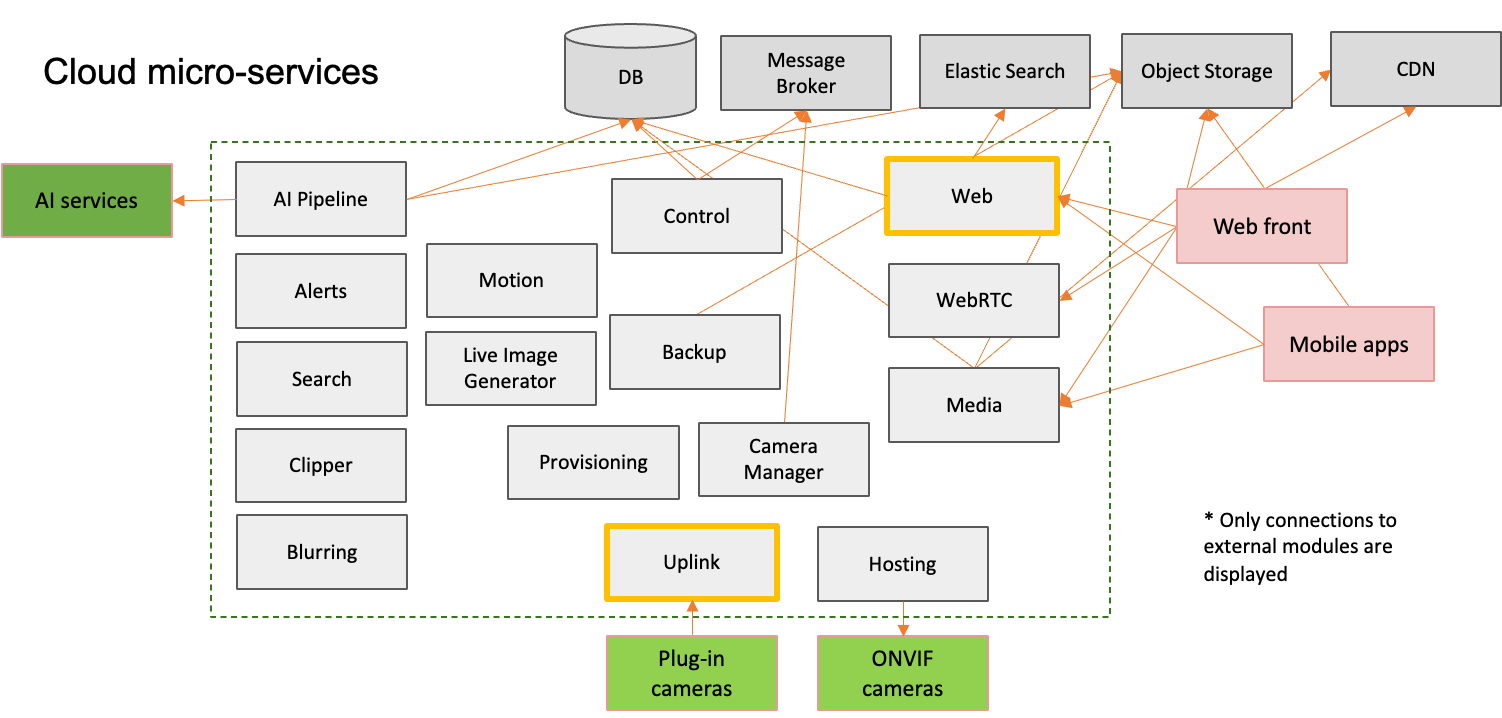

The diagram below shows the media (video) data flow between the main services.

Main services

There are many different types of instances and services. Some services are provided by infrastructure providers, such as Object Storage or Databases.

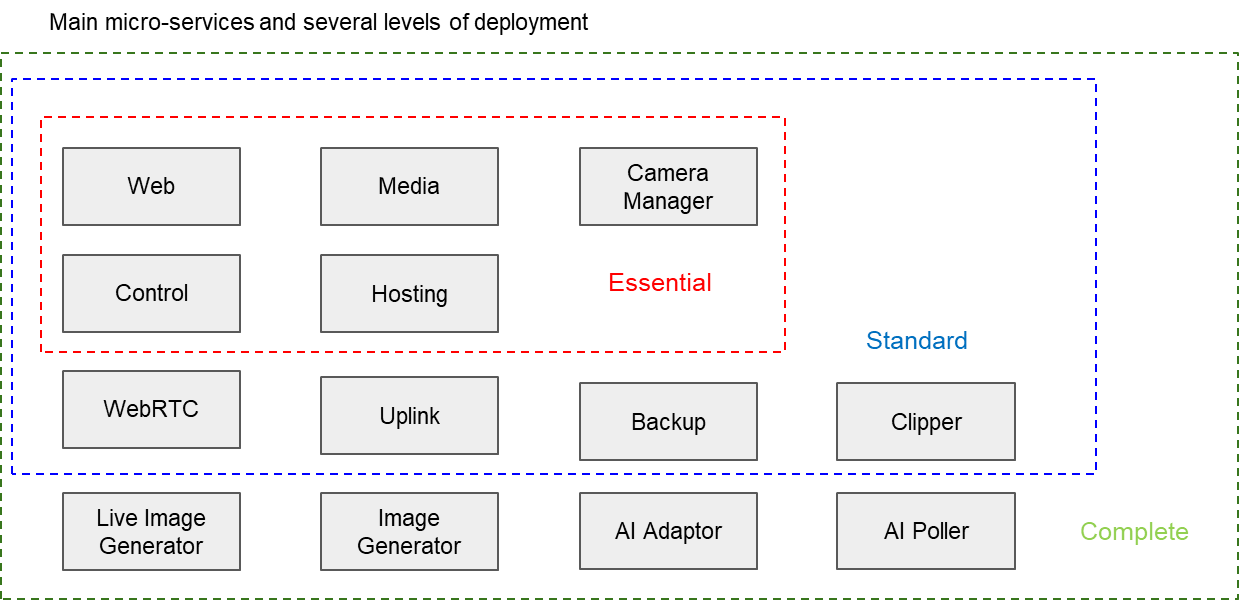

The main micro-services and levels of deployment:

Essential

• Web

• Media

• Camera Manager

• Hosting

• Control

Standard

All Essential plus the following:

• WebRTC

• Uplink

• Backup

• Clipper

• Provisioning

Complete

All Standard plus the following:

• AI Pipeline

• Alerts

• Search

• Blurring

• Motion

• Live Image Gen

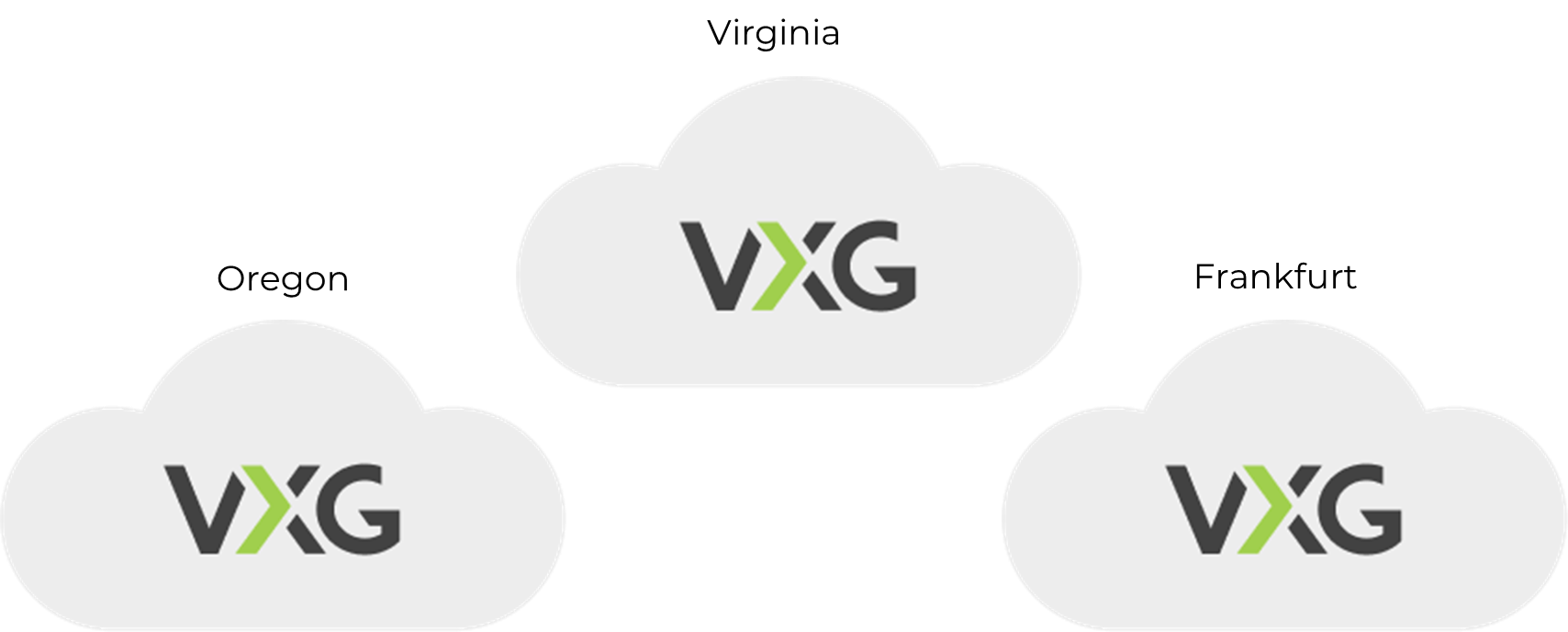

Multiple data centers

Cloud VMS services can be deployed in one or multiple data centers. It makes sense if cameras are in different zones.

A VSaaS service (or any other SaaS service that works with IP cameras) manages a collection of cameras or camera access tokens that “know” which copy of the CloudVMS is serving corresponding cameras. In other words, all VSaaS needs to know is a camera access token for each camera and there is no difference between working with a single or multiple Cloud VMS.
