VPN site-to-site connection

VXG Cloud VMS can connect to cameras via VPN. This requires the following steps:

1. The client provides the following information:

   • Make and Model of local firewall or router (Gateway).

   • External IP address (Static).

   • CIDR of local internal network (Optional).

   • Internal Mask (Optional).

2. VXG configures VPN and provides the client with the Configuration Scripts.

3. The client applies the Configuration Script to their router/firewall.

4. Then cameras can be added as ONVIF cameras using VPN addresses, instead of public IP addresses

   • Click Add Camera.



   • Choose ONVIF.

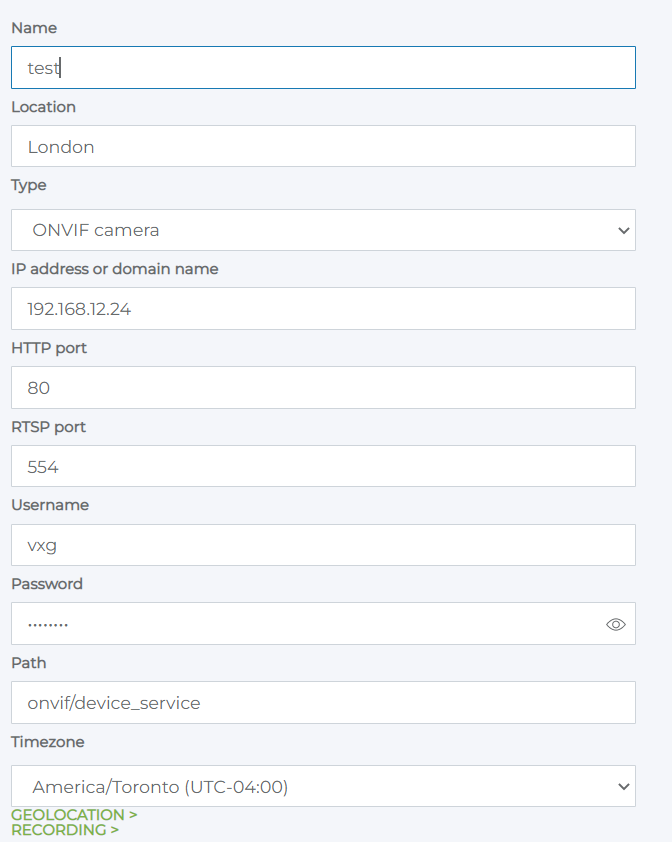

   • Fill in the fields specifying the local IP for the camera etc.



   • Click Apply.
