How to enable motion detection on Bosch camera

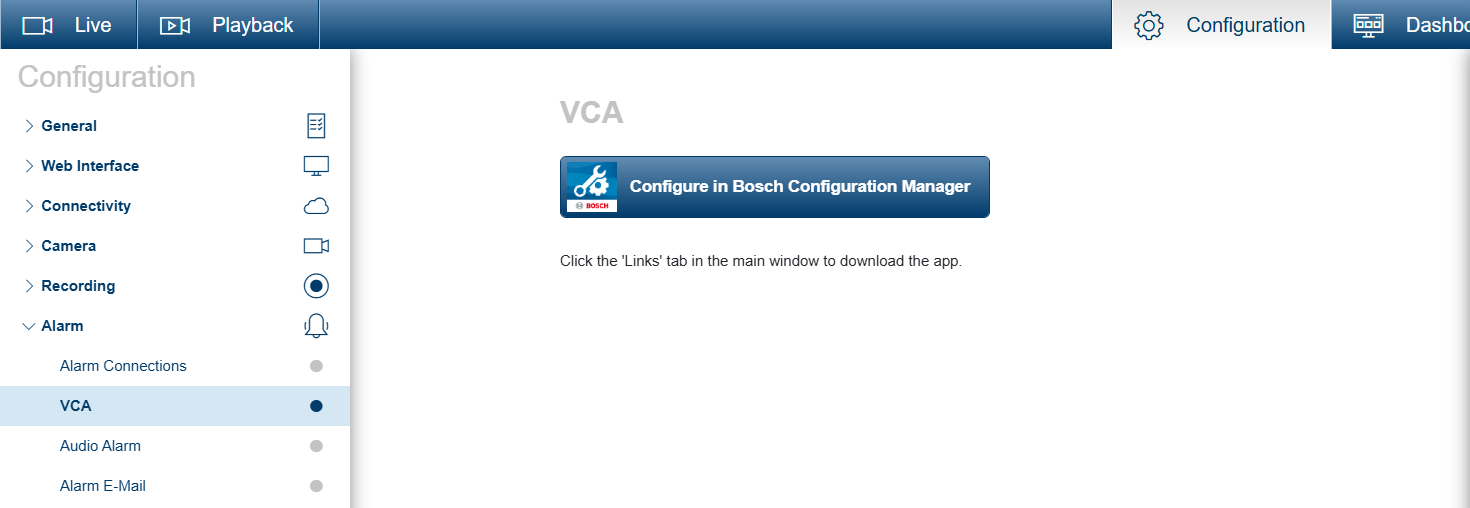

On most modern Bosch cameras the VCA (Video Content Analysis) configuration is done through Bosch Configuration Manager application.


This button will allow you to download the app. You need to install it and proceed with the installation. Then the setup begins:

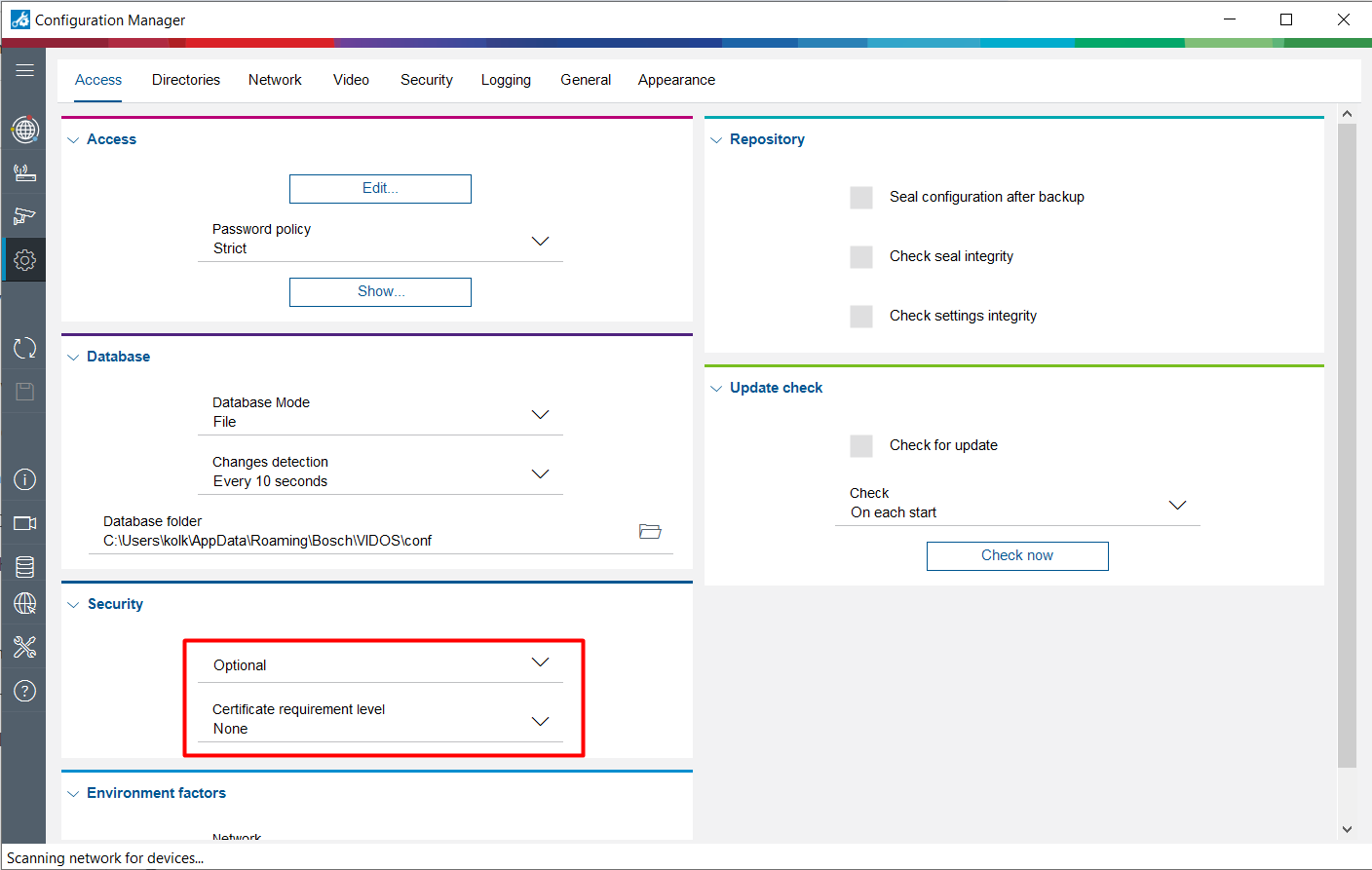

Step 1. Disable security by making the certificate requirement optional

Go to Preferences > Security. This will allow you to configure the cameras that don’t have HTTPS connection

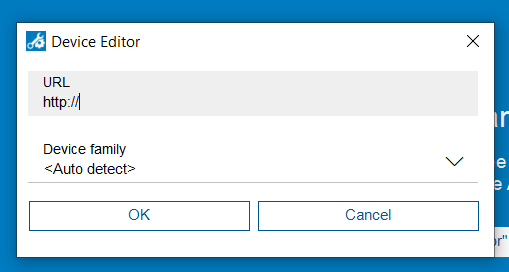

Step 2. Add the camera using the URL

Devices > Right click > New device > Enter the camera URL


Then, enter the camera admin credentials on the Device Access page. Save changes and refresh the page. After the refresh, the camera parameters should be displayed.

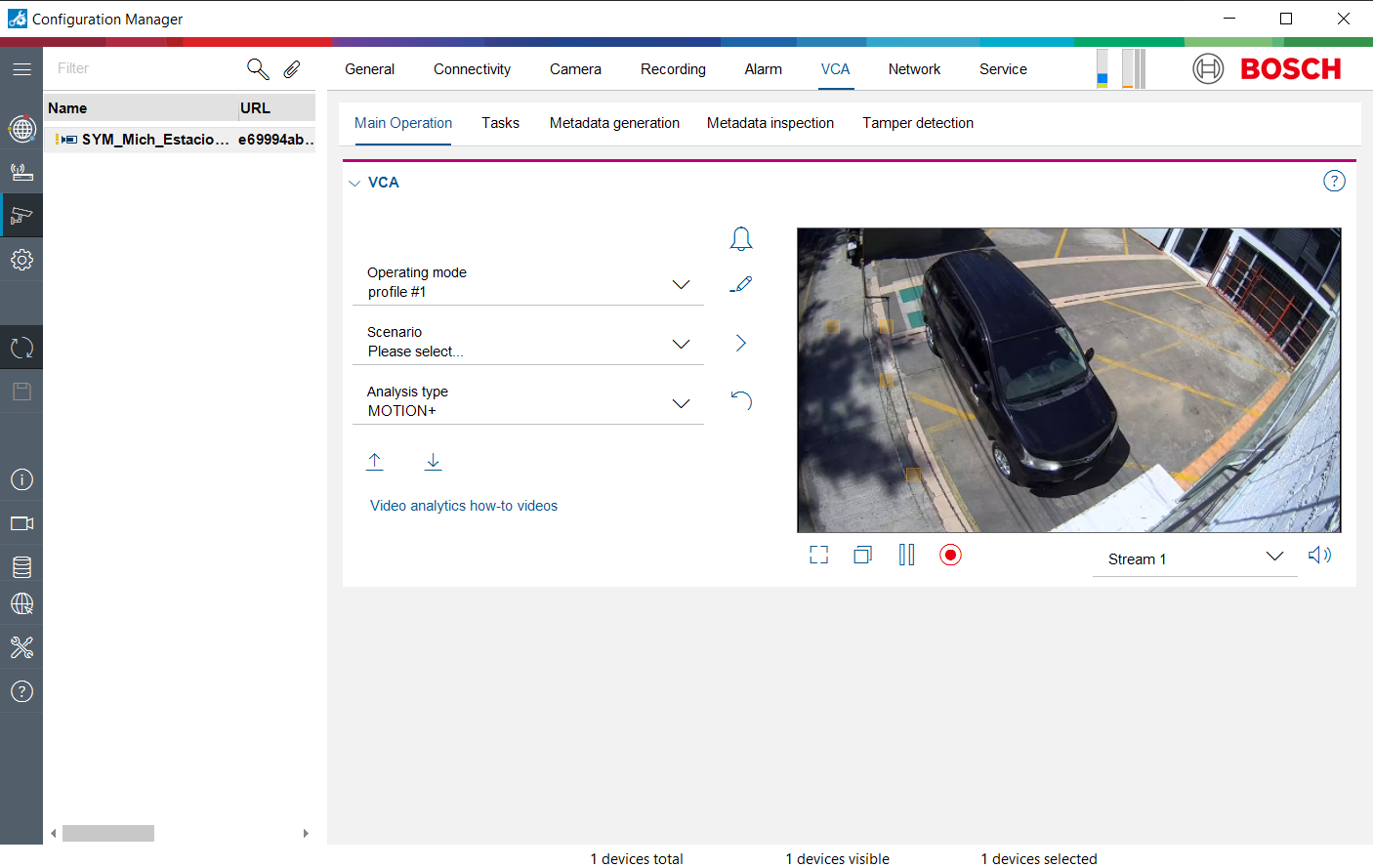

Step 3. Enable motion detection

VCA > Main Operation

Select one of the operating profiles and in Analysis type select MOTION+
